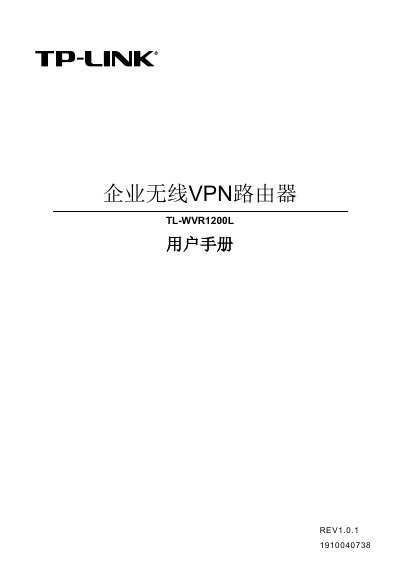

The TP-Link TL-WVR 1200L user manual provides setup, configuration, and feature details for the enterprise wireless VPN router.
This manual guides technical users on installing and operating the TL-WVR 1200L enterprise wireless VPN router. It covers hardware description, supported features, and detailed configuration steps for network, wireless, security, and VPN functions.
The document is organized into an introduction, product overview, configuration guide, extensive feature settings (including VPN, AP management, traffic control, and security), system tools, and appendices with FAQs, terminology, and full specifications. This manual is written in Chinese.
| Supported standards and protocols | IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.3x, 802.11e, 802.3ab, 802.11i, 802.11a, 802.11ac, CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, L2TP, PPTP, IPSec |
|---|---|
| LAN ports | 1~4 × 10/100/1000 Mbps auto‑MDI/MDIX RJ45 ports |
| WAN ports | 1~4 × 10/100/1000 Mbps auto‑MDI/MDIX RJ45 ports |
| Wireless frequency range | 2.4‑2.4835 GHz, 5.180‑5.240 GHz, 5.745‑5.825 GHz |
| Maximum wireless data rate | 300 Mbps (2.4 GHz 11n) + 867 Mbps (5 GHz 11ac) |
| Antenna count | 4 non‑removable omnidirectional antennas |
| Power input | 100‑240 V, 50/60 Hz, 0.5 A |
| Operating temperature | 0 °C – 40 °C |
The router provides 1 fixed WAN port, 1 fixed LAN port, and 3 configurable WAN/LAN ports, all supporting 10/100/1000 Mbps auto‑MDI/MDIX.
Yes, the router supports both local and remote management via its web interface.
The device operates from 0 °C to 40 °C.
