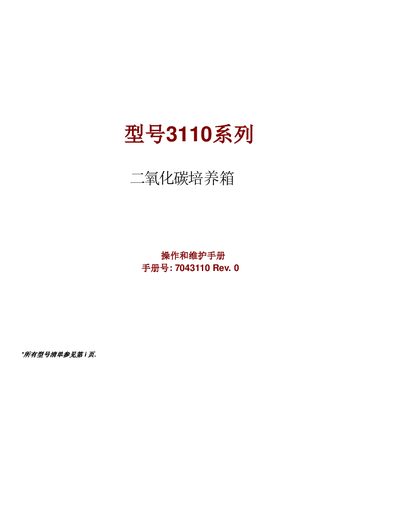

This manual provides operating, installation, calibration, configuration, alarm handling, daily maintenance, and technical specifications for the Thermo…
The Operation and Maintenance Manual covers all procedures needed to safely install, start up, calibrate, configure, and maintain the 3110 series CO₂ incubator. It includes safety warnings, required tools, and step‑by‑step instructions for each task.
Key sections detail equipment installation, calibration modes, configuration options, alarm definitions, routine cleaning, filter replacement, water‑jacket filling, and the full technical specifications of the incubator. Contact information for Thermo Fisher support is also provided. This manual is written in Chinese.
| Water‑Jacket Volume | 11.7 gal (43.5 L) |
|---|---|
| Internal Chamber Volume | 6.5 cu ft (184.1 L) |
| Power (115 V model) | 90‑125 VAC, 50/60 Hz, 3.6 A |
| Power (230 V model) | 180‑250 VAC, 50/60 Hz, 2.0 A |
| Net Weight | 265 lb (120 kg) |
| Operating Weight | 365 lb (166 kg) |
| External Dimensions | 26.3 in W × 39.5 in H × 25.0 in D |
| Operating Temperature Range | 5 °C to 40 °C |
| RS‑485 / Analog Output Options | RS‑485, 0‑1 V, 0‑5 V, 4‑20 mA |
Press the 静音 (Mute) button on the control panel to silence the audio alarm.
The water jacket holds approximately 11.7 gallons (43.5 liters) of water.
The 115 V model requires 90‑125 VAC, 50/60 Hz, 3.6 A; the 230 V model requires 180‑250 VAC, 50/60 Hz, 2.0 A.
