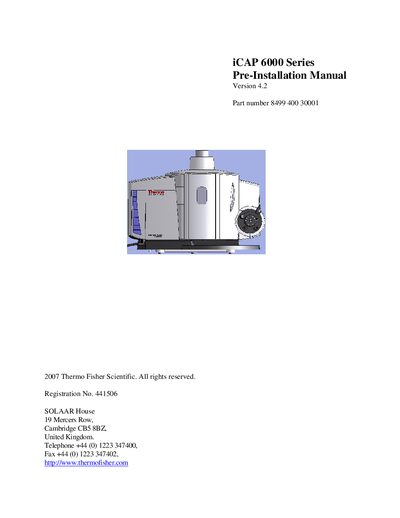

Thermo Fisher Scientific iCAP 6000 Series Pre-Installation Manual

This pre‑installation manual provides requirements and guidelines for installing the Thermo Fisher iCAP 6000 Series ICP‑OES spectrometer.

Brand: Thermo Fisher Scientific
Category: Other
Document type: Installation Guide
Language: English
Pages: 21
File format: PDF
File size: 488 KB
Published: 30 September, 2026
Updated: 30 September, 2026
MD5 checksum: 335E21B922CB8F79D67FB01E76D6886B
PDF: Thermo Fisher Scientific iCAP 6000 Series Pre-Installation Manual PDF

About this manual

The pre‑installation manual describes the site requirements, accessories, and safety considerations needed before the iCAP 6000 Series ICP‑OES spectrometer is installed. It helps customers prepare the laboratory environment so that installation can proceed efficiently and safely.

Key sections cover system accessories, transportation and handling, working‑area and environmental requirements, electrical and gas specifications, and a checklist to confirm that all conditions are met before the installation engineer arrives.

What's inside

Introduction
System Accessories
Transportation
Working Area Requirements
Environmental Requirements
Electrical Requirements
Gas Requirements
Pre‑Installation Checklist
Special Agreements

Specifications

Spectrometer dimensions (W×D×H)	980 mm × 900 mm × 920 mm
Spectrometer weight	95 kg
Electrical supply requirement	200‑240 VAC, 4 kVA, 50/60 Hz
Argon gas regulator pressure	0‑10 bar (0‑100 psi)
Extraction tube diameter	125 mm
Cooling capability (chiller)	900 W, 5 L/min flow rate

Frequently asked questions

Which plug is supplied for the USA/Canada market?

For customers in the USA and Canada the mains cord terminates in a NEMA L6‑20P Twist&Lock plug.
