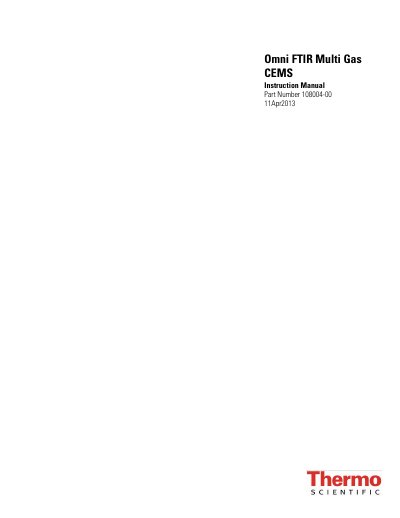

Thermo Fisher Omni FTIR Multi Gas CEMS Instruction Manual

About this manual

This manual provides detailed information on system installation, start‑up, operation, calibration, preventive maintenance, and troubleshooting for the Omni FTIR Multi Gas CEMS. It includes safety alerts, system component descriptions, and appendices covering warranty, Modbus protocol, DCS/PLC interfacing, and data transfer.

Safety and equipment‑damage alerts are clearly defined (DANGER, WARNING, CAUTION, Equipment Damage) and procedures for handling high‑temperature components, probe cleaning, and electrical grounding are included. The appendices also describe software setup (Calogix, IMACC) and web‑based concentration data transfer using IIS.

What's inside

• Introduction
• System Installation, Start Up and Shut Down
• Operation
• Calibration
• Preventive Maintenance and Servicing
• Troubleshooting
• System Component Description
• Modbus Protocol
• Concentration Data Transfer Using a Web Server

Specifications

Frequently asked questions

What safety alert symbols are used in the manual?

The manual uses DANGER, WARNING, CAUTION and Equipment Damage alerts to indicate hazards and potential equipment damage.

How can concentration data be transferred from the FTIR analyzer?

By configuring a web server with IIS to copy the current concentration file to a shared folder that can be accessed via an HTTP address.
