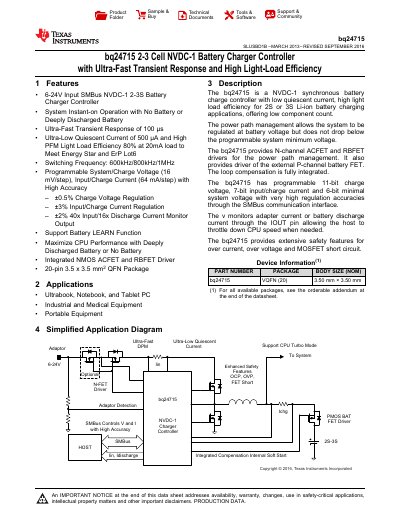

The bq24715 is a Texas Instruments NVDC‑1 synchronous battery charger controller for 2‑ or 3‑cell Li‑ion packs, offering ultra‑fast transient response and…
The bq24715 is a NVDC‑1 synchronous battery charge controller designed for 2‑ or 3‑cell Li‑ion battery applications. It provides low component count, integrated NMOS ACFET and RBFET drivers, and a programmable SMBus interface for precise voltage and current regulation.
Key features include ultra‑fast 100 µs transient response, ultra‑low 500 µA quiescent current, and high light‑load efficiency (80 % at 20 mA). The device supports 6‑24 V input, multiple switching frequencies (600 kHz, 800 kHz, 1 MHz), and includes extensive safety protections such as over‑current, over‑voltage, and MOSFET short‑circuit detection.
| Input voltage range | 6 V – 24 V |
|---|---|
| Switching frequency | 600 kHz / 800 kHz / 1 MHz |
| Quiescent current (standby) | 500 µA |
| Package | 20‑pin 3.5 mm × 3.5 mm VQFN |
| Light‑load efficiency | 80 % at 20 mA load |
The device operates with an input voltage from 6 V up to 24 V.
It can be configured for 600 kHz, 800 kHz, or 1 MHz switching frequencies.
The bq24715 is supplied in a 20‑pin VQFN package.
The standby quiescent current is 500 µA.
