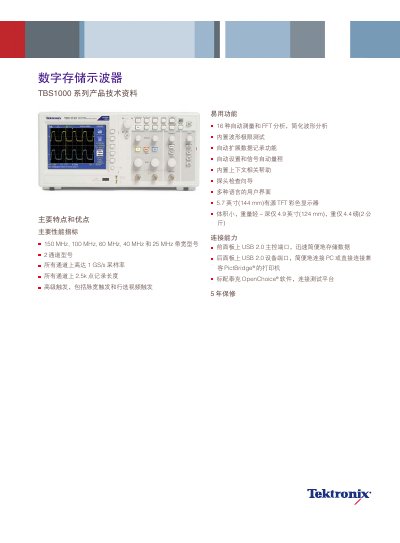

Tektronix TBS1000 Series Digital Storage Oscilloscope Product Data Sheet

About this manual

The Tektronix TBS1000 Series Digital Storage Oscilloscope is designed to provide economic performance in a compact design. It features standard functions such as USB connectivity, 16 automatic measurements, limit testing, data recording, and context-sensitive help to simplify waveform analysis. This manual is written in Chinese.

What's inside

• Ease of Use
• Connectivity
• Main Features
• Performance Indicators
• Specifications
• Trigger View
• Cursors
• Waveform Math
• Physical Characteristics
• Ordering Information

Frequently asked questions

What is the maximum input voltage rating for the TBS1000 Series oscilloscope?

The instrument supports a maximum input voltage of 300 V RMS CAT II.

What is the maximum data recording duration available for the TBS1000 Series?

The built-in data record function can save triggered waveforms for a period of up to 24 hours.
