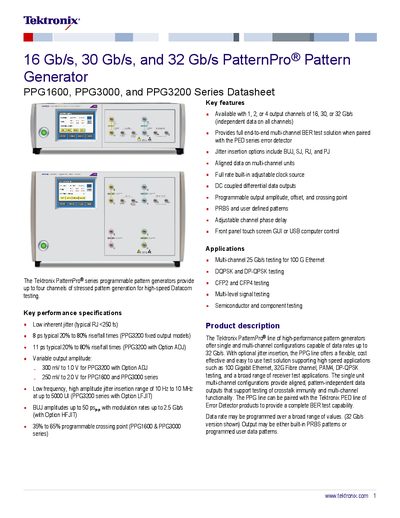

The Tektronix PatternPro PPG1600, PPG3000, and PPG3200 series datasheet details specifications, features, and options for high‑speed programmable pattern…
The PatternPro® series programmable pattern generators provide up to four channels of stressed pattern generation for high‑speed Datacom testing, supporting data rates up to 32 Gb/s and a range of applications such as 100 Gigabit Ethernet, Fibre Channel, and DP‑QPSK testing. The instruments offer configurable output amplitude, jitter insertion options, and a built‑in adjustable clock source.
The datasheet lists detailed electrical specifications, optional features (HFJIT, LFJIT, ADJ, FXD), physical dimensions, and ordering information for the PPG1600, PPG3000, and PPG3200 models, as well as compatible accessories and power plug options.
| Maximum data rate | 32 Gb/s |
|---|---|
| Typical inherent jitter (RJ) | <250 fs |
| Output amplitude range | 300 mV‑1.0 V (PPG3200 ADJ) / 250 mV‑2.0 V (PPG1600/PPG3000) |
| Clock output frequency (internal) | 15‑30 GHz (PPG3000) / 16‑32 GHz (PPG1600 & PPG3200) |
| Output impedance | 50 Ω single‑ended, 100 Ω differential |
| Physical dimensions (front panel) | 48.3 cm width, 13.3 cm height (1‑2 ch), 27.9 cm height (4 ch) |
The datasheet specifies low inherent jitter, with a typical RJ value of less than 250 fs.
The internal clock for the PPG3000 series can be set between 15 GHz and 30 GHz.
These models provide a variable output amplitude from 250 mV to 2.0 V.
