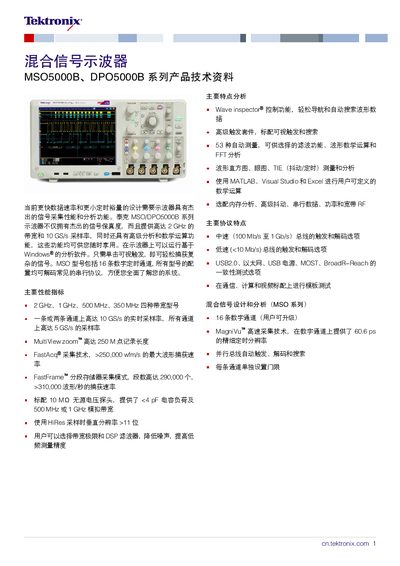

Technical data sheet for Tektronix MSO5000B and DPO5000B mixed‑signal oscilloscopes, covering performance specs, features and optional accessories.
The MSO5000B/DPO5000B series from Tektronix provides mixed‑signal oscilloscopes with up to 2 GHz analog bandwidth and 10 GS/s real‑time sampling. The instruments include 16 digital channels, advanced triggering, protocol decoding, and high‑resolution MagniVu™ capture for detailed timing analysis.
The series offers extensive optional software packages such as FastAcq®, DPOJET®, SignalVu™ and various protocol decoders, as well as a wide range of probes and accessories. Technical specifications, connectivity options, and upgrade paths are detailed for each model in the sheet. This manual is written in Chinese.
| Bandwidth | up to 2 GHz |
|---|---|
| Maximum real‑time sampling rate | 10 GS/s |
| Record length | up to 250 M points |
| Digital channels | 16 |
| Vertical resolution (HiRes mode) | >11 bits |
| Effective vertical bits (typical) | 6 bits |
The series provides up to 2 GHz analog bandwidth.
The MSO5000B series includes 16 digital channels.
The instruments can record up to 250 M points in a single capture.
HiRes mode provides vertical resolution greater than 11 bits.
