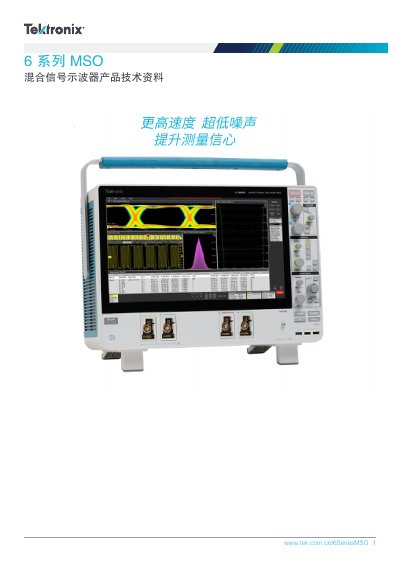

Product data sheet for the Tektronix 6 Series MSO mixed signal oscilloscope, detailing specifications, features, and performance parameters.
The Tektronix 6 Series MSO is a mixed signal oscilloscope featuring FlexChannel inputs that allow each channel to function as an analog signal input or up to eight digital logic inputs using TLP058 probes. It supports bandwidths up to 8 GHz and offers real-time sampling rates of 25 GS/s with up to 250 M points of record length. This manual is written in Chinese.
| Bandwidth | 1 GHz to 8 GHz |
|---|---|
| Sampling Rate | 25 GS/s |
| Record Length | 62.5 M to 250 M points |
| Vertical Resolution | 12-bit (up to 16-bit) |
| Display | 15.6 inch TFT |
| Warranty | 3 years |
The maximum bandwidth is 8 GHz.
Up to 32 digital channels can be supported using TLP058 probes.
Yes, it includes an optional integrated arbitrary waveform/function generator.
