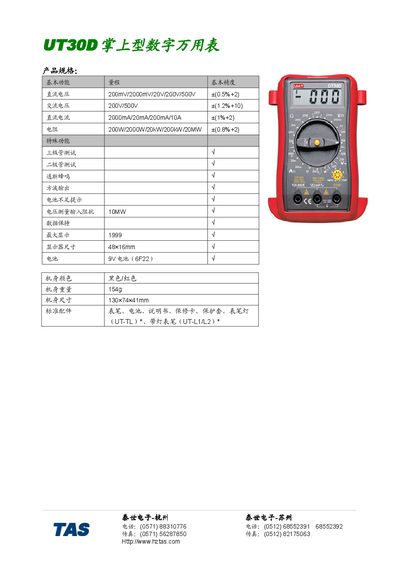

PDF: TAS UT30D Palm Digital Multimeter Specifications PDF

About this manual

The TAS UT30D is a palm-sized digital multimeter designed for measuring DC voltage, AC voltage, DC current, and resistance. It features a maximum display of 1999 and a 48x16mm LCD screen. This manual is written in Chinese.

What's inside

Product Specifications
Basic Functions
Special Functions
Physical Specifications
Standard Accessories

Specifications

DC Voltage Range	200mV/2000mV/20V/200V/500V
AC Voltage Range	200V/500V
DC Current Range	2000mA/20mA/200mA/10A
Resistance Range	200W/2000W/20kW/200kW/20MW
Input Impedance	10MΩ
Maximum Display	1999
Display Size	48×16mm
Battery	9V Battery (6F22)
Weight	154g
Dimensions	130×74×41mm

Frequently asked questions

Does the UT30D support transistor testing?

Yes, the multimeter includes a transistor test function.

What is the physical size of the TAS UT30D multimeter?

The device measures 130 x 74 x 41 mm.

What is the weight of the TAS UT30D multimeter?

The unit weighs 154 g.

What type and size of battery does the TAS UT30D require?

It uses a 9 V battery (6 F 2 2).
