TAS UT602 digital multimeter is a professional electronic component tester, suitable for electronic maintenance, circuit design, teaching and research. The product has the function of measuring resistance, inductance, diodes, and transistors. The measurement accuracy is high, the operation is simple, and it is an essential tool for electronic maintenance engineers.
The UT602 is a handheld resistance and electricity sense table that measures resistance, inductance, diode and transistor parameters. It features basic accuracy of 0.89 % and supports data hold, low‑voltage warning, and a maximum display of 1999.

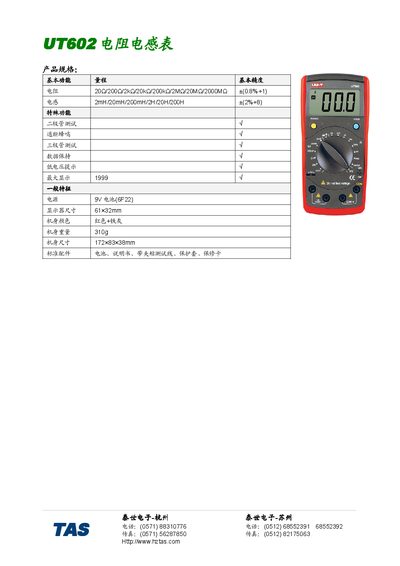

The device is powered by a 9 V battery (6F22), has a 61 × 32 mm LCD, weighs 310 g and measures 172 × 83 × 38 mm. It comes with a battery, user manual, clip‑on test leads, protective case and warranty card. This manual is written in Chinese.
| Resistance range | 200 Ω – 2000 MΩ |
|---|---|
| Inductance range | 2 mH – 200 H |
| Power source | 9 V battery (6F22) |
| Display size | 61 × 32 mm |
It uses a 9 V battery (model 6F22).
It measures resistance from 200 Ω up to 2000 MΩ.
Yes, diode testing is supported.
The package includes a battery, manual, clip‑on test leads, protective case and warranty card.
