The document introduces the specifications and features of the folding digital multimeter products from TAS, including range, basic accuracy, special functions, etc.
The UT2001 is a foldable digital multimeter designed for electronic repair and testing. It measures DC/AC voltage, DC/AC current, resistance, and includes special functions like battery testing, square‑wave output, transistor and diode testing, continuity beep, full‑symbol display, sleep mode, mis‑operation alarm, and low‑voltage prompt.

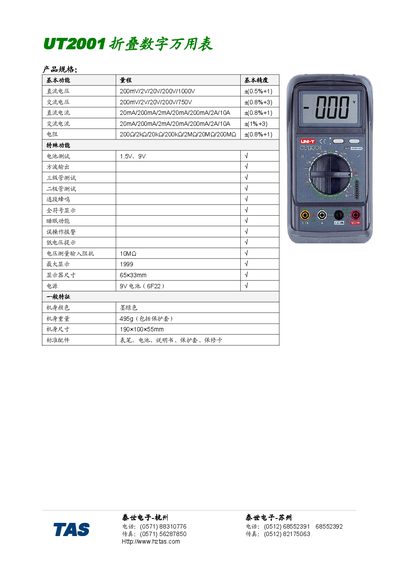

The manual lists the instrument’s specifications, including voltage, current and resistance ranges, input resistance of 10 MΩ, a maximum display of 1999, and a 65 × 33 mm display size. Standard accessories supplied are test leads, a 9 V battery (6F22), the instruction booklet, a protective case, and a warranty card. This manual is written in Chinese.
| DC Voltage Range | 200 mV – 1000 V |
|---|---|
| AC Voltage Range | 200 mV – 750 V |
| DC Current Range | 20 mA – 10 A |
| AC Current Range | 20 mA – 10 A |
| Resistance Range | 200 Ω – 200 MΩ |
| Battery Test Voltage | 1.5 V, 9 V |
| Input Resistance | 10 MΩ |
| Included Accessories | Test leads, battery, instruction manual, protective case, warranty card |
It measures DC voltage from 200 mV up to 1000 V with ±(0.5 % + 1) accuracy.
Yes, it can test 1.5 V and 9 V batteries.
The input resistance is 10 MΩ.
The package includes test leads, a 9 V battery, the instruction booklet, a protective case, and a warranty card.
