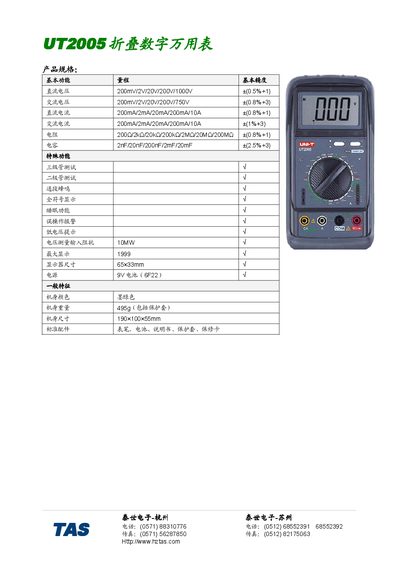

ut2005 folding digital multimeter can measure dc voltage, ac voltage, dc current, ac current, resistance, capacitance and diodes, and has functions such as three-stage tube testing, segment beeping, full-symbol display, sleep function, error operation alarm, and low voltage prompt
The LUT2005 is a digital multimeter offering DC/AC voltage and current measurement, resistance, capacitance, diode and transistor testing, and several special functions such as sleep mode and low‑voltage warning. It features a 1999‑count display with a 65 × 33 mm screen and a 9 V battery power source.
Standard accessories include test leads, a battery, the user manual, a protective case, and a warranty card. The device is manufactured by TAS (泰世电子) with contact offices in Hangzhou and Suzhou. This manual is written in Chinese.
| DC Voltage Range | 200 mV – 1000 V (200 mV, 2 V, 20 V, 200 V, 1000 V) |
|---|---|
| AC Voltage Range | 200 mV – 750 V (200 mV, 2 V, 20 V, 750 V) |
| Resistance Range | 200 Ω – 200 MΩ (200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ, 200MΩ) |
| Capacitance Range | 2 nF – 20 µF (2nF, 20nF, 200nF, 2µF, 20µF) |
| Display Size | 65 × 33 mm |
| Power Source | 9 V battery (6F22) |
It is powered by a 9 V battery (6F22).
Standard accessories are test leads, a battery, the manual, a protective case, and a warranty card.
