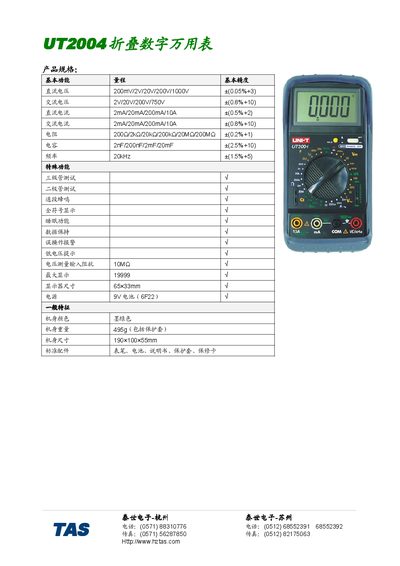

UT2004 is a folding digital multimeter from TAS. It has a variety of functions, including DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, diode test, three-terminal transistor test, full-symbol display, sleep function, data retention, error operation alarm, low voltage prompt, etc.
The UT2004 is a handheld digital multimeter that measures DC/AC voltage, current, resistance, capacitance, frequency and includes special functions such as diode, transistor testing and data hold. Its specifications include voltage ranges up to 1000 V, current up to 10 A, resistance up to 200 MΩ and a frequency range to 20 kHz.
The device weighs 495 g, measures 190 × 100 × 55 mm, and features a 65 × 33 mm display with a maximum count of 19999. It is powered by a 9 V battery (6F22) and comes with test leads, a battery, the manual, a protective case and a warranty card. For support, contact TAS Electronics in Hangzhou or Suzhou. This manual is written in Chinese.
| DC Voltage Range | 200 mV / 2 V / 20 V / 200 V / 1000 V |
|---|---|
| AC Voltage Range | 2 V / 20 V / 200 V / 750 V |
| DC Current Range | 2 mA / 20 mA / 200 mA / 10 A |
| Resistance Range | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 20 MΩ / 200 MΩ |
| Capacitance Range | 2 nF / 200 nF / 2 µF / 20 µF |
| Frequency Measurement | Up to 20 kHz |
| Voltage Measurement Input Impedance | 10 MΩ |
| Maximum Display Count | 19999 |
| Display Size | 65 × 33 mm |
| Power Supply | 9 V battery (6F22) |
| Weight | 495 g (including protective case) |
| Dimensions | 190 × 100 × 55 mm |
The multimeter has a voltage measurement input impedance of 10 MΩ.
The display can show up to 19999 counts.
Standard accessories are test leads, a battery, the manual, a protective case and a warranty card.
