TAS UT105 is a high-performance multifunction test instrument that can measure DC voltage, AC voltage, DC current, resistance, capacitance, ground resistance, frequency, diode, continuity, etc.

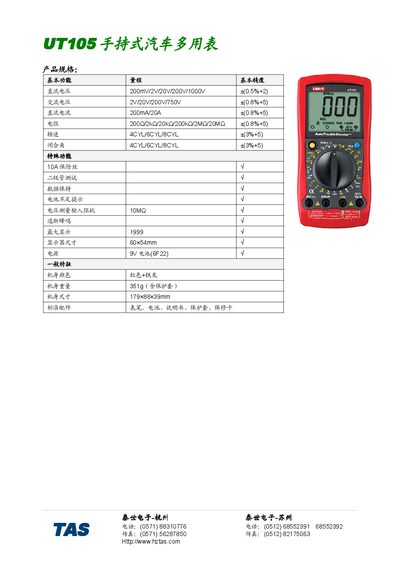

This manual describes the basic and special functions of the TAS UT105 multimeter, including DC voltage, current, and resistance measurement ranges. It also lists general features such as weight, dimensions, and battery type.
Key physical characteristics are a compact size of 179 mm × 88 mm × 39 mm, a weight of 351 g, and operation powered by a 9 V (6F22) battery. The device supports DC voltage ranges from 200 mV up to 710 V and current ranges from 200 mA to 20 A. This manual is written in Japanese.
| DC Voltage Range | 200 mV – 710 V |
|---|---|
| Current Range | 200 mA – 20 A |
| Dimensions | 179 mm × 88 mm × 39 mm |
| Weight | 351 g |
| Battery | 9 V (6F22) |
It measures DC voltage from 200 mV up to 710 V.
The multimeter can measure current from 200 mA to 20 A.
The device measures 179 mm × 88 mm × 39 mm.
It is powered by a 9 V battery (type 6F22).
