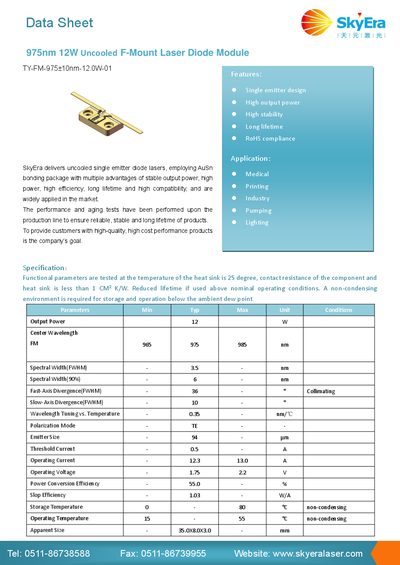

Data sheet for SkyEra TY-FM-975±10nm-12.0W-01 975 nm 12 W uncooled F‑mount laser diode module, detailing specifications, operating conditions and safety…
The SkyEra TY-FM-975±10nm-12.0W-01 is a 975 nm, 12 W uncooled F‑mount laser diode module designed for medical, printing, industrial, pumping and lighting applications. It uses an AuSn bonding package for stable output power, high efficiency and long lifetime.
Key specifications include a typical output power of 12 W, center wavelength of 975 nm, spectral width (FWHM) of 3.5 nm, fast‑axis divergence of 36°, and slow‑axis divergence of 10°. The module operates at 15 °C‑55 °C (non‑condensing) with a storage range of 0 °C‑80 °C. Safety instructions require eye and skin protection, ESD handling, proper soldering, and adequate heat dissipation.
| Output Power | 12 W |
|---|---|
| Center Wavelength | 975 nm |
| Spectral Width (FWHM) | 3.5 nm |
| Fast‑Axis Divergence (FWHM) | 36 ° |
| Slow‑Axis Divergence (FWHM) | 10 ° |
| Operating Current | 13.0 A (max) |
| Operating Voltage | 2.2 V (max) |
| Power Conversion Efficiency | 55.0 % |
| Operating Temperature | 15 °C – 55 °C (non‑condensing) |
| Storage Temperature | 0 °C – 80 °C (non‑condensing) |
The module should be operated between 15 °C and 55 °C in a non‑condensing environment.
Solder the pins close to the root, using a maximum temperature of 260 °C for less than 10 seconds.
Avoid eye or skin exposure, use ESD protection, provide short‑circuit protection, ensure good heat dissipation, and operate within rated current and power.
