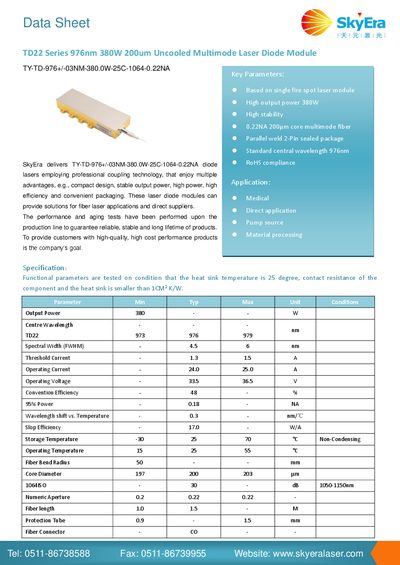

The SkyEra TD22 Series 976nm 380W 200µm uncooled multimode laser diode module datasheet provides specifications, key parameters, applications, and safety…
The TD22 Series laser diode module is a single‑fire‑spot, high‑output (380 W) device with a 0.22 NA 200 µm core multimode fiber and standard 976 nm central wavelength. It is RoHS‑compliant and intended for medical, pump‑source, direct‑application, and material‑processing uses.
The datasheet lists detailed electrical and optical specifications, dimensional drawings, and handling instructions, including required ESD protection, soldering limits, and operating/storage temperature ranges.
| Output Power | 380 W |
|---|---|
| Centre Wavelength | 976 nm |
| Spectral Width (FWHM) | 4.5‑6 nm |
| Threshold Current | 1.3‑1.5 A |
| Operating Current | 24.0‑25.0 A |
| Operating Voltage | 33.5‑36.5 V |
| Efficiency | 48 % |
| Operating Temperature Range | 15 °C ~ 55 °C |
| Storage Temperature Range | -30 °C ~ +70 °C |
Avoid eye or skin exposure to direct or scattered radiation, use ESD protection, provide short‑circuit protection, solder pins only when current exceeds 6 A with a max temperature of 260 °C, ensure good heat dissipation, and test with coated fiber to reduce back‑reflection.
The module should be operated between 15 °C and 55 °C.
Store the module between –30 °C and +70 °C.
