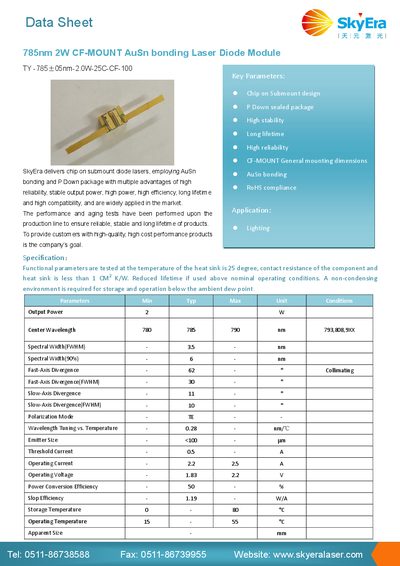

Data sheet for SkyEra TY-785±05nm-2.0W-25C-CF-100 785 nm 2 W CF‑MOUNT laser diode module, detailing specifications and handling instructions.
The SkyEra TY-785±05nm-2.0W-25C-CF-100 is a 785 nm, 2 W CF‑MOUNT laser diode module that uses AuSn bonding and a P‑Down sealed package. It features a chip‑on‑submount design, high stability, long lifetime, and RoHS compliance.
The module is intended for lighting applications and requires careful handling: avoid eye or skin exposure to laser radiation, protect against ESD, maintain good heat dissipation, and operate within the specified temperature ranges. Storage and operation should be performed in a non‑condensing environment below the ambient dew point.
| Output Power | 2 W |
|---|---|
| Spectral Width (FWHM) | 3.5 nm |
| Fast‑Axis Divergence | 62° |
| Slow‑Axis Divergence | 11° |
| Polarization Mode | TE |
| Threshold Current | 0.5 A |
| Operating Temperature | 15 °C to 55 °C |
The module should be operated between 15 °C and 55 °C.
Avoid eye or skin exposure to direct or scattered radiation, use ESD protection, ensure good heat dissipation, and keep the device in a non‑condensing environment.
