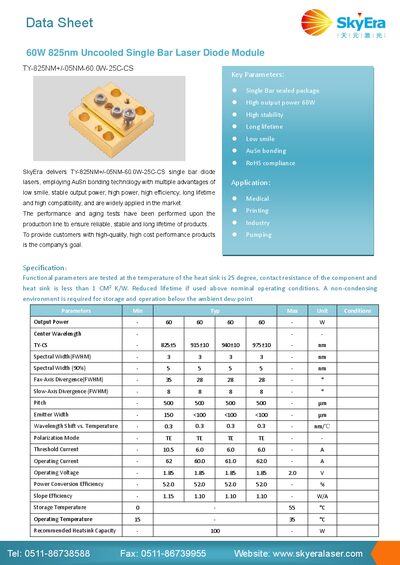

The SkyEra TY-825NM+/ -05NM-60.0W-25C-CS data sheet provides specifications, performance parameters, and usage guidelines for the 60 W 825 nm uncooled…
The TY-825NM+/ -05NM-60.0W-25C-CS is a 60 W uncooled single‑bar laser diode module operating at 825 nm. It uses AuSn bonding technology for low smile, high stability, and long lifetime, and complies with RoHS standards.
The sheet lists detailed electrical and optical specifications, recommended operating and storage temperatures, and safety instructions such as eye protection, ESD handling, and heat‑dissipation requirements. Typical applications include medical, printing, industrial, and pumping systems.
| Output Power | 60 W |
|---|---|
| Spectral Width (FWHM) | 3 nm |
| Pitch | 500 µm |
| Emitter Width (min) | 150 µm |
| Operating Current (typ) | 60.0 A |
| Operating Voltage (typ) | 1.85 V |
| Power Conversion Efficiency | 52 % |
| Storage Temperature Range | 0 °C – 55 °C |
| Operating Temperature Range | 15 °C – 35 °C |
The module provides a constant 60 W output power.
It should be operated between 15 °C and 35 °C.
Store it at 0 °C to 55 °C in a non‑condensing environment.
Avoid eye or skin exposure, use ESD protection, and ensure adequate heat dissipation.
