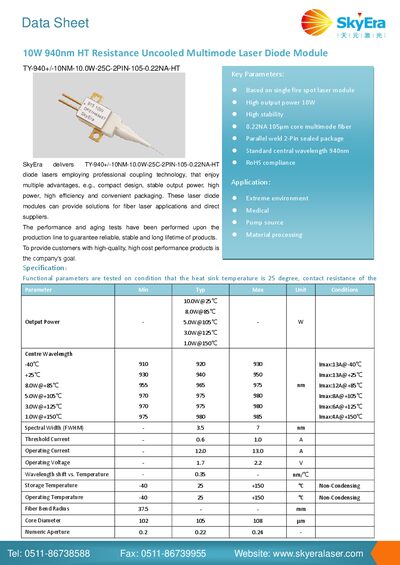

Data sheet for SkyEra TY-940+/-10NM-10.0W-25C-2PIN-105-0.22NA-HT 10W 940nm HT resistance uncooled multimode laser diode module.
The SkyEra TY-940+/-10NM-10.0W-25C-2PIN-105-0.22NA-HT is a 10 W, 940 nm high‑temperature resistance, uncooled multimode laser diode module. It features a 0.22 NA 105 µm core multimode fiber, a parallel‑weld 2‑pin sealed package, and RoHS compliance, making it suitable for extreme environments, medical, pump source, and material‑processing applications.
Key specifications include output power of 10 W at 25 °C, centre wavelength of 940 nm, operating current up to 13 A, and a storage temperature range of –40 °C to +105 °C. The sheet also provides dimension diagrams, pin‑out details, and handling instructions such as ESD protection, soldering limits, and required heat dissipation.
| Output Power | 10.0 W @25 °C |
|---|---|
| Centre Wavelength | 940 nm |
| Numerical Aperture | 0.22 |
| Operating Current | 12.0‑13.0 A |
| Operating Voltage | 1.7‑2.2 V |
| Storage Temperature | -40 °C to +105 °C |
The module can operate from –40 °C up to +105 °C.
