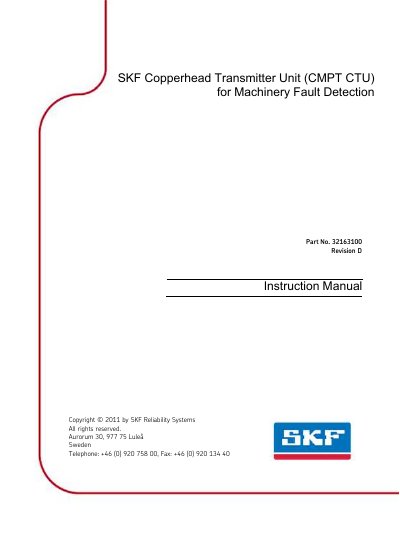

This manual provides installation, configuration, and wiring instructions for the SKF CMPT CTU vibration and temperature transmitter used in machinery fault…
The SKF Copperhead Transmitter Unit (CMPT CTU) is a digital device designed for machinery fault detection. It processes vibration signals from accelerometers using three selectable analysis methods: SKF Acceleration Enveloping, Acceleration, or Velocity. The unit also measures temperature and provides analog output signals proportional to the processed data.
| Operating temperature | 0 to 70 °C (32 °F to 160 °F) |
|---|---|
| Weight | 0,225 kg (0,102 lbs) |
| Power consumption | 6 W |
| Vibration analysis range (Acceleration Enveloping) | 500 Hz – 10 kHz |
| Vibration analysis range (Velocity ISO) | 10 Hz – 1 kHz |
A green light indicates correct operation, while red indicates a fault or overload.
The unit supports SKF Acceleration Enveloping, Acceleration, and Velocity analysis.
The CTU consumes a maximum of 6 Watts.
