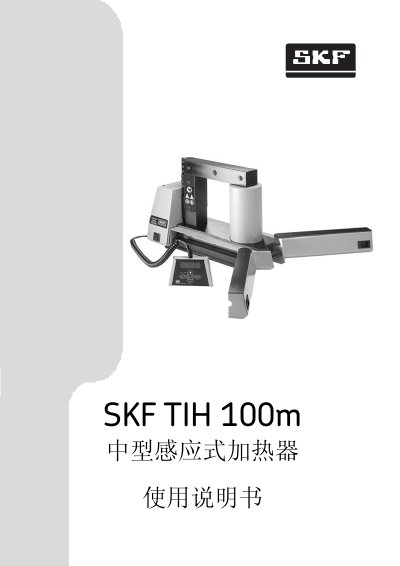

SKF TIH 100m Medium Induction Heater User Manual, introduces the safe use of the heater, the composition, technical parameters, connecting the power connector, pre-preparation, operation methods, safety protection, troubleshooting, and spare parts.
This manual describes the SKF TIH 100m medium‑size induction heater, its components, safety requirements, and how to install and operate the device. It explains the heating principle, the movable control panel, foldable support legs, and interchangeable magnetic yokes.
The document includes detailed technical parameters, wiring instructions, power‑up preparation, operating modes (temperature or time), safety protections, fault codes, and a list of spare parts with part numbers. This manual is written in Chinese.
| Voltage (230V) | 230V/50-60Hz |
|---|---|
| Voltage (400‑460V) | 400-460V/50-60Hz |
| Recommended fuse (230V) | 16A |
| Recommended fuse (400‑460V) | 10A |
| Maximum power (230V) | 3.6kVA |
| Maximum power (400‑460V) | 4.0‑4.6kVA |
| Dimensions (W×D×H) | 570 × 230 × 350 mm |
| Maximum workpiece weight (bearing) | 120 kg |
A qualified electrical engineer must attach a suitable power connector according to the voltage specified in the technical parameters.
Press the POWER button to cycle through power levels; the selected power is indicated by the LED.
E03 means the induction coil has overheated; allow the coil to cool before restarting the heater.
