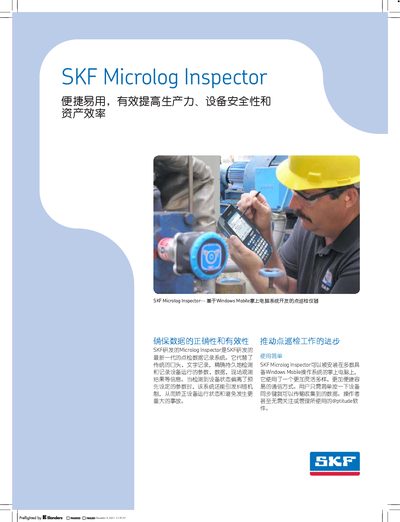

The SKF Microlog Inspector I-Pro and S-Pro are handheld Windows Mobile devices for point inspection, data recording, wireless sensor integration and asset…
The Microlog Inspector is a handheld inspection instrument built on the Windows Mobile platform. It records equipment parameters, observations and generates work orders, providing alerts when conditions deviate from preset limits. The device can be installed on most Windows Mobile handhelds and supports USB, LAN, Wi‑Fi, 3G/GPRS and Bluetooth data transfer.
The system includes optional wireless vibration sensors (WMCD) that capture speed, acceleration, temperature and FFT data. It is available in two models – I‑Pro for general use and S‑Pro for ATEX‑certified hazardous areas – each with its own hardware specifications, battery options and communication interfaces. This manual is written in Chinese.
| Dimensions (I‑Pro) | 196 mm × 81 mm × 28 mm |
|---|---|
| Dimensions (S‑Pro) | 234 mm × 91 mm × 43 mm |
| Weight (I‑Pro) | 510–567 g |
| Weight (S‑Pro) | 616–700 g |
| Operating temperature (I‑Pro) | -20 °C to +60 °C |
| Operating temperature (S‑Pro) | -20 °C to +40 °C |
| Battery (I‑Pro) | Lithium 3.7 V, 4000 mAh (14.8 Wh) |
| Battery (S‑Pro) | Lithium 7.4 V, 2200 mAh (15.8 Wh) |
| Communications (I‑Pro) | USB, LAN, Wi‑Fi, Bluetooth |
| Communications (S‑Pro) | USB, Wi‑Fi, barcode scanner |
| Processor | Intel XScale PXA270 (520 MHz) for I‑Pro, PXA255 (400 MHz) for S‑Pro |
| RAM | 128 MB |
| Maximum FFT sampling frequency | Speed 1 kHz, Acceleration envelope 2 kHz |
| Speed measurement range | 0.3–55.0 mm/s (RMS) |
| Acceleration envelope range | 0.3–20.0 gE |
Data can be transferred via USB, LAN, Wi‑Fi, or 3G/GPRS cellular networks.
Wireless sensors can capture speed, acceleration, temperature and FFT spectrum data.
