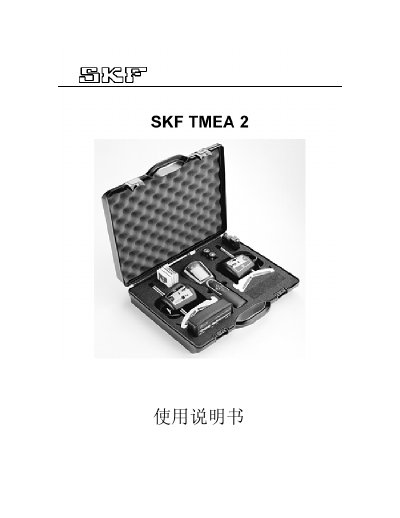

This manual describes the SKF TMEA 2 shaft alignment tool, including its purpose, safety requirements and compliance with international standards such as EMC Directive 89/336/EEC, EN 50081‑1, EN 550114, EN 0082‑2 and EN 61000‑4‑2/‑3. The EU Declaration of Conformity and CE marking information are included to confirm regulatory approval.
The document also lists the different model variants (C1, C2, F2, F7, etc.) with their respective measurement ranges, and provides guidance for installation, use, and maintenance of the tool in industrial settings.
| TMEA C1 measurement range | 1500 mm |
|---|---|
| TMEA C2 measurement range | 900 mm |
| TMEA F7 measurement options | 150 mm, 220 mm, 320 mm |
It is a shaft alignment tool used for aligning rotating equipment.
