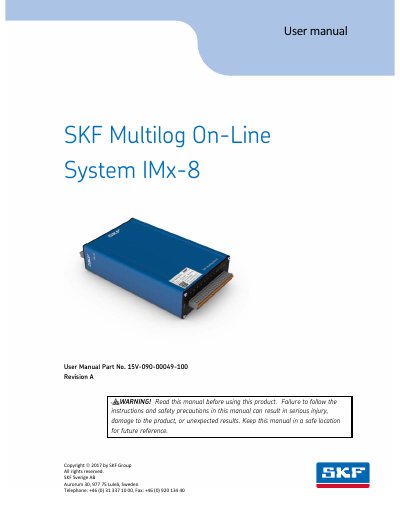

The SKF IMx-8 user manual provides installation, configuration, technical data, and troubleshooting information for the Multilog On‑Line condition…
The IMx-8 is an 8‑channel condition‑monitoring device designed for rotating machinery such as turbines, motors, pumps and gearboxes. It can be mounted on a DIN rail (IP30) or in an IP65 cabinet and communicates via Ethernet, Bluetooth or USB.
The manual covers safety messages, installation steps, wiring and cable connections, network and device configuration, detailed technical specifications, maintenance procedures, LED status indicators, and a troubleshooting guide. It also includes warranty information and contact details for product support.
| Physical size | 104 x 173 x 40 mm |
|---|---|
| Weight | 410 g (0.9 lb.) |
| IP rating | IP30 (DIN rail), IP65 (wall cabinet) |
| Operating temperature range | −40 to +70 °C |
| Power consumption | 13 W (PoE) or 24‑48 VDC |
| Digital inputs | 2 non‑isolated inputs |
| Storage capacity | 4 GB effective eMMC flash memory |
| Ethernet interface | 100 Mbit/s RJ45, TCP/IP |
| Bluetooth | Bluetooth v4.0 Low Energy (BLE) |
The IMx-8 has an IP30 rating for the DIN‑rail enclosure and an IP65 rating when mounted in a wall‑mounted SKF cabinet.
The unit can be powered by 13 W Power over Ethernet (PoE) or by a 24‑48 VDC supply.
It includes 4 GB of effective eMMC flash memory for data storage.
