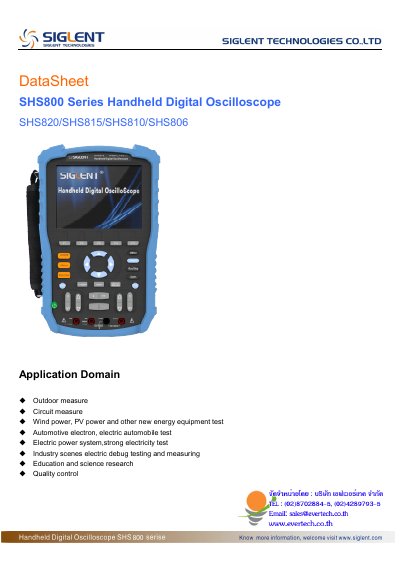

Datasheet for the SIGLENT SHS800 Series handheld digital oscilloscopes, covering technical specifications, features, and application domains.
This datasheet details the SIGLENT SHS800 Series of handheld digital oscilloscopes, which combine oscilloscope, multimeter, and recorder functions in a single unit. The series includes four models: SHS820, SHS815, SHS810, and SHS806, offering bandwidths from 60MHz to 200MHz.
| Bandwidth | 60MHz to 200MHz |
|---|---|
| Real Time Sampling Rate | 1GSa/s (Single Channel) |
| Equivalent Sampling Rate | 50GSa/s |
| Display Resolution | 6000 dots |
| Multimeter Resolution | 6000 counts |
| Input Impedance | 1MΩ±2％, 18pf±3pf |
| Vertical Resolution | 8 bits |
| Display Size | 5.7 inch TFT color LCD |
| Battery Capacity | 5000mAh |
| Weight | 1.5Kg |
The oscilloscope is designed for outdoor measurement, circuit measurement, wind and PV power testing, automotive electronics, electric power systems, industrial debugging, and education.
The multimeter provides measurements of DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, and Continuity.
The Scope TrendPlot supports more than 18 hours of recording time with an 800K points capacity.
The device supports Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean, and Italian.
