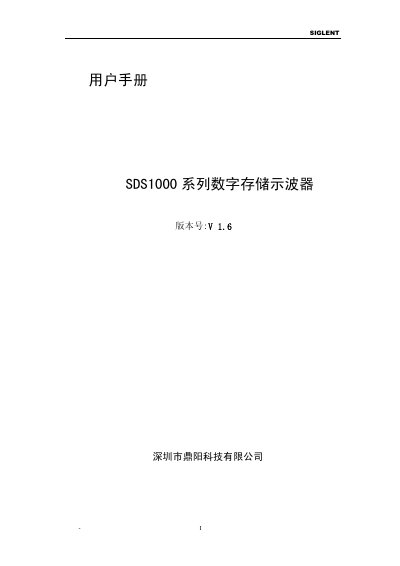

This manual covers operation, setup, and troubleshooting for the SIGLENT SDS1000 series digital storage oscilloscope.
This manual provides comprehensive instructions for the SIGLENT SDS1000 series digital storage oscilloscope. It covers initial setup, including familiarizing yourself with the front panel and user interface, as well as performing functional checks and probe compensation. The guide details the operation of various systems such as vertical, horizontal, and trigger controls, along with measurement and storage functions. This manual is written in Chinese.
| Real-time Sampling Rate | Up to 2GSa/s |
|---|---|
| Memory Depth | Up to 2Mpts |
| Display Type | 5.7 inch TFT LCD |
| Input Impedance | 1MΩ ±2% || 16pF ±3pF |
| Max Input Voltage | 400V |
| Operating Temperature | 10°C to +40°C |
Connect the probe to Channel 1, set the probe attenuation to 10X in the channel menu and on the probe switch, then adjust the probe until the square wave is flat.
The oscilloscope supports 12 languages including Simplified Chinese, Traditional Chinese, English, French, German, Russian, Spanish, Portuguese, Arabic, Japanese, Korean, and Italian.
