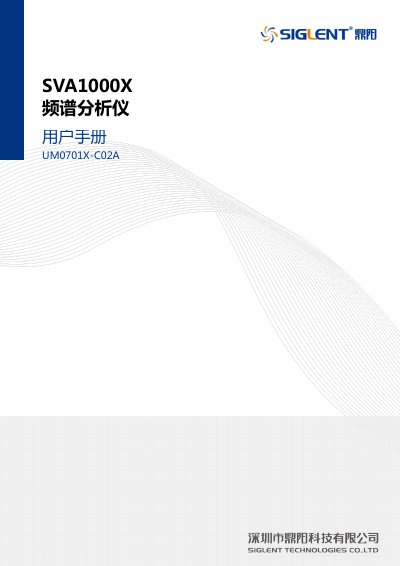

This manual covers the operation, remote control via USB/LAN/Web, and troubleshooting for the Siglent SVA1000X spectrum analyzer.
The Siglent SVA1000X Series Spectrum Analyzer is designed for frequency ranges from 9 kHz to 1.5 GHz. It features a full digital intermediate frequency technology and includes capabilities for tracking signal generation, vector network analysis (with optional kit), cable fault location, and EMI pre-compliance testing.
The document provides comprehensive instructions on the front panel operation, including controls for Frequency, Span, Amplitude, Sweep, Trigger, and various measurement functions. It also details remote control methods using USB, LAN, SCPI commands, and a web browser interface without requiring additional drivers. This manual is written in Chinese.
The instrument measures frequencies from 9 kHz to a maximum of 1.5 GHz.
Adjust the feet so the analyzer tilts slightly forward for stable placement and better viewing.
