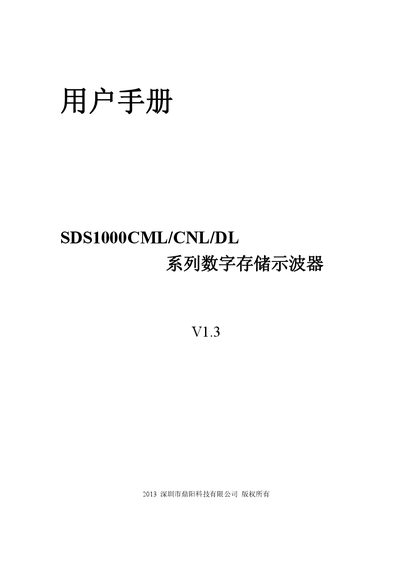

User manual for the SIGLENT SDS1000 L series digital storage oscilloscope, covering operation, safety, and specifications.
The SIGLENT SDS1000 L series is a compact, high‑performance digital storage oscilloscope with a 7‑inch color TFT‑LCD display and a wide range of measurement functions. This manual provides an overview of the front panel, user interface, safety precautions, and basic operation steps such as probe matching and compensation.
Detailed chapters describe the menu system, trigger and acquisition settings, storage options, auxiliary functions, online help, and application examples. The appendix lists the full technical specifications, default settings, and routine maintenance procedures. This manual is written in Chinese.
| Sample rate (single channel) | 1 GSa/s |
|---|---|
| Maximum input voltage | 400 V (DC+AC peak) |
| Input impedance | 1 MΩ ± 2% |
| Display size | 7‑inch (178 mm) color TFT‑LCD |
| Display resolution | 480 × 234 pixels |
| Power consumption | 50 VA Max |
| Operating temperature range | 10 °C to +40 °C |
| Dimensions (L × W × H) | 323.1 mm × 135.6 mm × 157 mm |
| Weight | 2.5 kg |
| Supported interface languages | 12 languages |
The oscilloscope can accept up to 400 V (DC+AC peak) with a 1 MΩ input impedance.
It supports 12 languages, including Simplified Chinese, Traditional Chinese, English, French, German, Russian, Spanish, Portuguese, Arabic, Japanese, Korean, and Italian.
The instrument operates from 100 V to 240 V AC with automatic selection and a frequency range of 45 Hz to 440 Hz.
