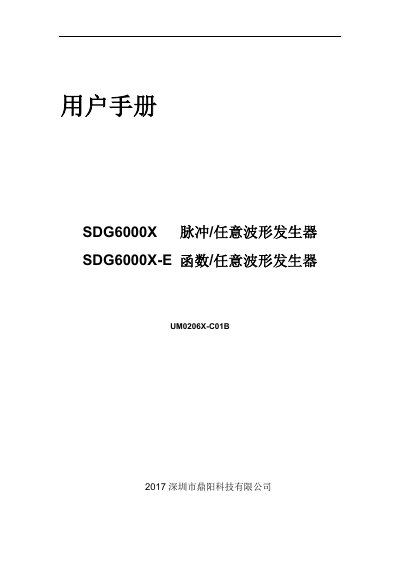

SIGLENT SDG6000X/SDG6000X-E Pulse/Arbitrary Waveform Generator User Manual

This manual covers the operation, settings, and troubleshooting for the SIGLENT SDG6000X and SDG6000X-E series dual-channel pulse and arbitrary waveform…

Brand: SIGLENT
Category: Signal generator
Document type: User Manual
Language: Chinese
Pages: 164
File format: PDF
File size: 3 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: BB37934812BED04C8CDD0CE79B652759
PDF: SIGLENT SDG6000X/SDG6000X-E Pulse/Arbitrary Waveform Generator User Manual PDF

About this manual

This document is the user manual for the SIGLENT SDG6000X and SDG6000X-E series dual-channel pulse (function)/arbitrary waveform generators. It details product functions, operation methods, setting options, and application examples. The manual covers safety information, product specifications, operation guides, advanced features, and troubleshooting procedures. This manual is written in Chinese.

What's inside

General Safety
System Function Settings
Standard Waveform Settings
Harmonic Settings
Modulation/Sweep/Burst Settings
Storage and Recall
Auxiliary Function Settings
Interface Settings
Application Examples
Troubleshooting

Specifications

Max Output Frequency	500 MHz
Sampling Rate	2.4 GSa/s
Vertical Resolution	16 bit
Max Output Amplitude	20Vpp
Display	4.3 inch TFT-LCD

Frequently asked questions

What is the maximum output frequency of the SDG6000X series?

The maximum output frequency is 500 MHz.

Does the SDG6000X-E series support IQ signal generation?

No, the SDG6000X-E series does not support IQ signal generation or PRBS code generation.

What is the minimum pulse width for the pulse generator?

The minimum pulse width is 3.3 ns.

Download PDF (3 MB)
