The Sharp PC357NT photocoupler datasheet provides electrical characteristics, ratings, and application information.

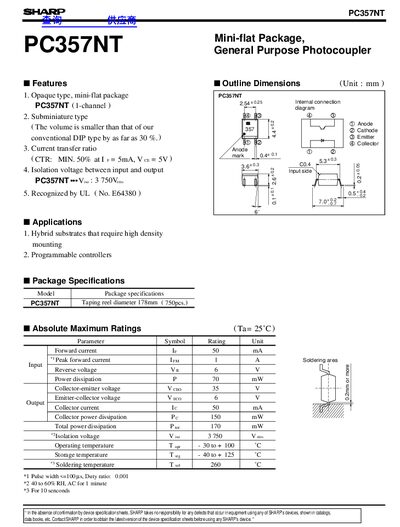

This datasheet describes the Sharp PC357NT general‑purpose photocoupler, its package options, and typical application circuits. It includes absolute maximum ratings, electrical characteristics, and recommended operating conditions for designers.
Key sections cover isolation voltage, collector‑emitter ratings, current transfer ratio (CTR), temperature limits, and soldering guidelines, along with graphs of performance versus temperature and duty cycle.
| Collector‑emitter voltage (VCEO) | 35 V |
|---|---|
| Emitter‑collector voltage (VECO) | 6 V |
| Collector current (IC) | 50 mA |
| Collector power dissipation (PC) | 150 mW |
| Total power dissipation (Ptot) | 170 mW |
| Operating temperature range | -30 °C to +100 °C |
| Storage temperature range | -40 °C to +125 °C |
| Soldering temperature | 260 °C |
The collector‑emitter voltage rating is 35 V.
It can operate from –30 °C up to +100 °C.
The maximum collector current is 50 mA.
