This guide covers overview, selection, installation, wiring, front‑panel operation, running, adjustment, diagnostics and parameter settings for the…

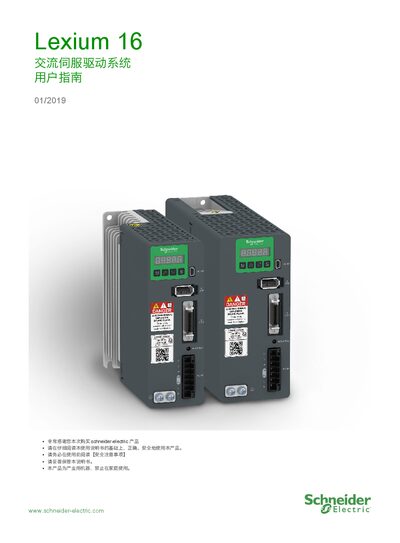

The Lexium 16 AC servo drive system from Schneider Electric is an industrial‑grade controller for three‑phase servo motors. The manual provides the information needed to safely install, configure and operate the drive in a variety of applications.
It is organized into sections on safety information, system overview, product selection, mechanical installation, wiring diagrams, front‑panel functions, operation modes, adjustment procedures, diagnostic methods and a full list of configurable parameters. This manual is written in Chinese.
| Operating temperature | 0 °C to 40 °C |
|---|---|
| Storage temperature | -25 °C to 70 °C |
| Relative humidity | 5 % to 95 % |
| Input voltage | 1‑220 Vac, 200 Vac ± 15 % to 240 Vac + 10 % |
| Protection rating | IP20 |
| Cooling method | 0.1‑0.4 kW natural cooling, 0.75‑1.5 kW fan cooling |
Only qualified professional personnel may install, operate, maintain or service the device.
The drive can operate from 0 °C to 40 °C, with relative humidity between 5 % and 95 %, and has an IP20 protection rating.
It accepts 1‑220 Vac, with a nominal range of 200 Vac ± 15 % to 240 Vac + 10 %.
The front panel includes a 7‑segment LED display.
