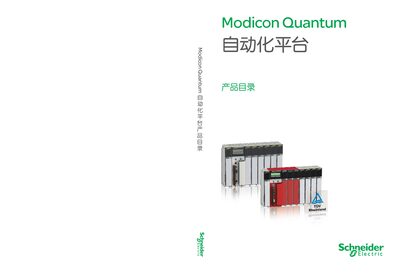

Product catalog for Schneider Electric's Unity Processor in the Modicon Quantum automation platform.
The catalog introduces the Unity Processor, a high‑performance CPU for the Modicon Quantum automation platform. It details the processor’s architecture, memory options, I/O modules, communication interfaces and safety features.
Key sections cover new features, base‑plate and I/O architecture, discrete and analog I/O, special modules, communication options, safety PLC functions, software tools and service information. This manual is written in Chinese.
| Memory capacity | Up to 3 Mb |
|---|---|
| Memory expansion | PCMCIA memory expansion cards |
| Modbus RS‑232 ports | Two ports |
| Modbus Plus port | One port |
| Ethernet interface | 10BASE‑T/100BASE‑TX TCP/IP port (RJ45) |
| USB port | One USB port (high‑end models) |
| Front‑panel display | LCD display (2 lines × 16 characters) |
Memory can be expanded by inserting PCMCIA memory expansion cards.
