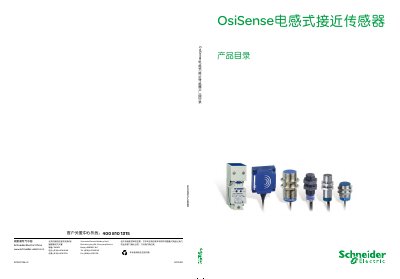

Schneider Electric OsiSense inductive proximity sensor catalog with selection guides, specifications, and accessories.
This catalog presents Schneider Electric's OsiSense inductive proximity sensors, covering a wide range of variants such as general‑type, optimized, and application‑specific models. It includes selection guides, technical specifications, and recommended cable accessories for each sensor family.
The document also provides detection curves, replacement tables, and detailed information on IP ratings, temperature ranges, dimensions, power supply options, and connector types, helping users choose the right sensor for industrial automation, material handling, and safety applications. This manual is written in Chinese.
| Detection distance (Sn) | 2.5 mm – 15 mm (varies by model) |
|---|---|
| IP protection rating | IP65, IP67, IP68 (molded cable), IP69K (M12‑30) |
| Operating temperature | -40 °C to +70 °C (TF suffix) / -25 °C to +85 °C (TT suffix) |
| Dimensions (W×H×D) | 26 mm × 26 mm × 13 mm (example for flat type) |
| Power supply | 3‑wire (PNP/NPN) or 2‑wire |
| Cable length (molded) | 2 m (standard), 5 m or 10 m optional |
| Connector options | M8, M12, M18, screw terminals, 1/2"‑20UNF, DIN |
OsiSense sensors are offered with IP65 and IP67 ratings, IP68 for models with molded cable, and IP69K for the M12‑30 series.
Standard models operate from –40 °C to +70 °C (TF suffix) and a higher‑temperature version operates from –25 °C to +85 °C (TT suffix).
The XS series provides detection distances of 2.5 mm, 4 mm, 8 mm, and 15 mm depending on the specific model.
Supported connectors include M8, M12, M18, screw terminals, 1/2"‑20UNF, and DIN connectors.
