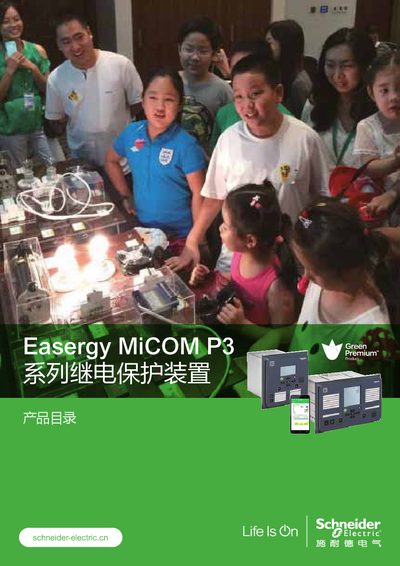

The Schneider Electric Easergy MiCOM P3 product catalog details the standard and advanced relay protection devices, specifications, communication options…
The Easergy MiCOM P3 series is a digital relay protection solution for medium‑low voltage applications, covering line, motor, transformer and generator protection. It offers two variants – a standard model with integrated feeder and motor protection and an advanced modular model with arc‑flash detection and expanded I/O.
The catalog provides technical parameters, environmental limits, communication protocols, and a complete ordering guide with accessory part numbers, helping engineers select and configure the appropriate protection unit for industrial, commercial and utility installations. This manual is written in Chinese.
| Operating Temperature | -40 °C to 60 °C |
|---|---|
| Front Port | USB |
| Rear Ports | RS232, IRIG‑B, RS485, Ethernet |
It supports IEC 61850, IEC 60870‑5‑101/103, DNP3, Modbus, Ethernet/IP, DeviceNet, Profibus DP, SPAbus and other redundant protocols.
The devices operate from –40 °C up to 60 °C.
The series offers configurable digital inputs/outputs, analog inputs, temperature sensor inputs, USB front port, and optional arc‑flash sensor connections.
