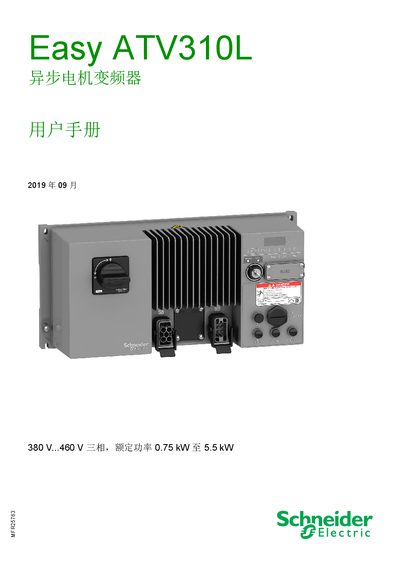

User manual for the Schneider Electric ATV310L variable‑frequency drive, covering installation, wiring, configuration and safety.
This manual provides detailed instructions for installing, wiring, configuring and operating the Schneider Electric ATV310L inverter. It includes safety warnings, pre‑installation checks, and step‑by‑step setup procedures for industrial motor applications.
The document also contains full parameter tables, function compatibility charts, maintenance guidelines, and diagnostic troubleshooting information to help qualified personnel safely commission and service the drive. This manual is written in Chinese.
| Input voltage (3‑phase) | 380 V – 460 V, 50/60 Hz |
|---|---|
| Output voltage (3‑phase) | 380 V – 460 V |
| Rated power range | 0.75 kW – 5.5 kW |
| Switching frequency range | 2 kHz – 12 kHz (rated 4 kHz) |
Only qualified personnel who have read the manual and received safety training may install, adjust, repair or maintain the inverter; all safety warnings and lock‑out procedures must be followed.
The inverter is rated from 0.75 kW up to 5.5 kW.
It supports a three‑phase input voltage of 380 V to 460 V at 50 Hz or 60 Hz.
Connect the grounding terminal to the grounding screw below the output terminal and follow local electrical regulations before energizing the inverter.
