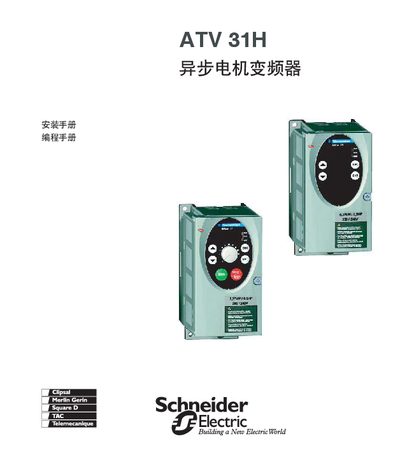

Schneider Electric ATV31 Inverter Model Manual
The manual provides detailed information on the ATV31 inverter series, including model specifications, installation procedures, wiring diagrams, and brake resistor configuration. Safety precautions and operational guidelines are emphasized to ensure proper and safe use.
Technical data such as input voltage ranges, power ratings, and current limits are listed for each model variant, along with mechanical dimensions and mounting requirements. The document also contains parameter and function indexes for advanced configuration. This manual is written in Chinese.
Schneider Electric ATV31 specifications
| Input voltage (3‑phase) | 380 V – 460 V, 50/60 Hz |
|---|---|
| Output voltage (3‑phase) | 380 V – 460 V |
| Rated power range | 0.75 kW – 5.5 kW |
| Switching frequency range | 2 kHz – 12 kHz (rated 4 kHz) |
All Schneider Electric ATV31 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What must be done before installing the inverter?
The inverter power must be disconnected and, after the power is off and the display disappears, wait at least 10 minutes for the internal capacitor to discharge before any mechanical or electrical work.
How can automatic restart after a fault be prevented?
Install an external power‑cutoff device in the supply circuit or use a low‑speed detector to interrupt the inverter power when a fault occurs.
What safety precautions must be taken before operating the ATV310L inverter?
Only qualified personnel who have read the manual and received safety training may install, adjust, repair or maintain the inverter; all safety warnings and lock‑out procedures must be followed.
What is the rated power range of the ATV310L inverter?
The inverter is rated from 0.75 kW up to 5.5 kW.
