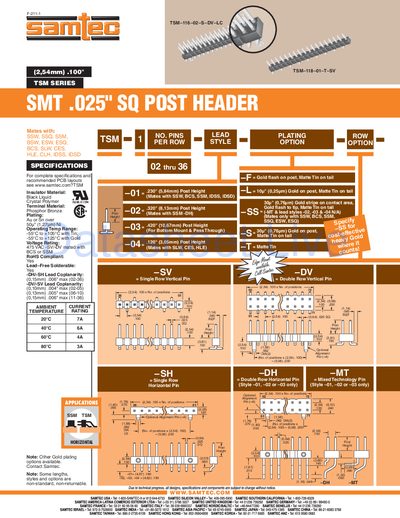

Technical specification sheet for Samtec TSM Series connectors detailing pin configurations, lead styles, post heights, plating options, and electrical ratings.
This datasheet provides technical specifications for the Samtec TSM Series of surface mount connectors. It covers various configurations including single and double row horizontal and vertical pin styles, as well as mixed technology options. The document details lead styles, post heights ranging from .120" to .420", and available plating options such as Gold or Tin over Nickel.
| Insulator Material | Black Liquid Crystal Polymer |
|---|---|
| Terminal Material | Phosphor Bronze |
| Operating Temp Range (Tin) | -55°C to +105°C |
| Operating Temp Range (Gold) | -55°C to +125°C |
| Voltage Rating | 475 VAC |
| Current Rating (40°C) | 6A |
| Current Rating (60°C) | 4A |
| Current Rating (80°C) | 3A |
The insulator material is Black Liquid Crystal Polymer.
The terminal material is Phosphor Bronze.
Yes, the document states they are RoHS Compliant.
The voltage rating is 475 VAC.
