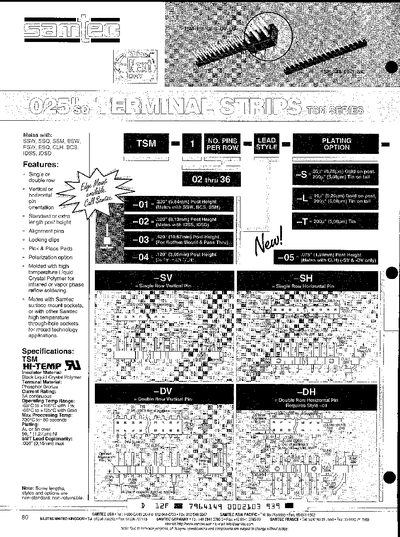

The 025sq TSM series terminal strips are offered in single or double‑row configurations with vertical or horizontal pin orientation. They feature standard or extra‑length post height, locking clips, pick‑and‑place pads, polarization options, and are molded with high‑temperature liquid crystal polymer for reflow soldering.
The datasheet lists key specifications such as a 3 A continuous current rating, operating temperature ranges of –65 °C to +105 °C (tin) or +125 °C (gold), a maximum processing temperature of 230 °C for 60 seconds, and options for Au or Sn plating over Ni. Various pin counts and post heights are available to suit different mounting requirements.
| Terminal Material | Phosphor Bronze |
|---|---|
| Current Rating | 3 A continuous |
| Operating Temperature (Gold) | -65 °C to +125 °C |
| Maximum Processing Temperature | 230 °C for 60 seconds |
| Post Height (Standard) | 230" (5.84 mm) |
The terminal strips are rated for 3 A continuous current.
