SCPU Series IP68 USB Circular Connectors are combinations of SCPU and SCRUS Series, SCPU series connectors are sealed circular USB receptacles, SCRUS series connectors are sealed circular USB receptacle cable assemblies, both are standard USB and mini USB sizes, with different electrical and mechanical specifications.

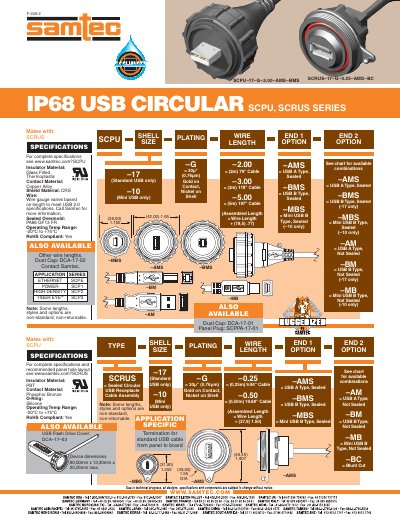

The Samtec SCPU/SCRUS series provides IP68‑rated circular USB connectors for A, B and Mini‑USB types. The datasheet lists material specifications, temperature range, RoHS compliance and available length options.
Key features include glass‑filled thermoplastic or PBT insulators, copper‑alloy or phosphor‑bronze contacts, CRS shielding, and a range of sealed or non‑sealed configurations. Detailed part‑number charts show wire‑gauge, plating and over‑mold options for lengths from 0.25 m to 5 m. This manual is written in Chinese.
| Insulator Material (SCPU) | Glass Filled Thermoplastic |
|---|---|
| Insulator Material (SCRUS) | PBT |
| Contact Material (SCPU) | Copper Alloy |
| Contact Material (SCRUS) | Phosphor Bronze |
| Shield Material | CRS |
| Operating Temperature Range | -20 °C to +75 °C |
| RoHS Compliant | Yes |
The connectors operate from –20 °C to +75 °C.
Yes, both series are RoHS compliant.
