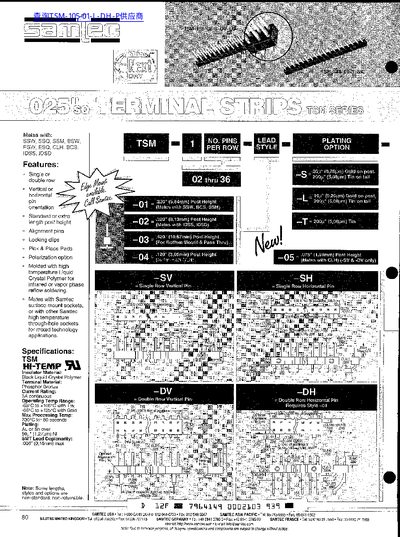

The Samtec TSM series consists of single or double row terminal strips available in vertical or horizontal pin orientations. These components feature standard or extra-length post heights and include options such as alignment pins, locking clips, pick & place pads, and polarization.
Manufactured with high-temperature Liquid Crystal Polymer insulators and phosphor bronze terminals, these strips are designed for infrared or vapor phase reflow soldering. They mate with Samtec surface mount sockets or other high-temperature through-hole sockets for mixed technology applications.
| Terminal Material | Phosphor Bronze |
|---|---|
| Current Rating | 3A continuous |
| Operating Temp Range (Tin) | -65°C to +105°C |
| Operating Temp Range (Gold) | -65°C to +125°C |
| Max Processing Temp | 230*C for 60 seconds |
With Tin, the range is -65°C to +105°C; with Gold, it extends to +125°C.
The max processing temperature is 230°C for 60 seconds.
