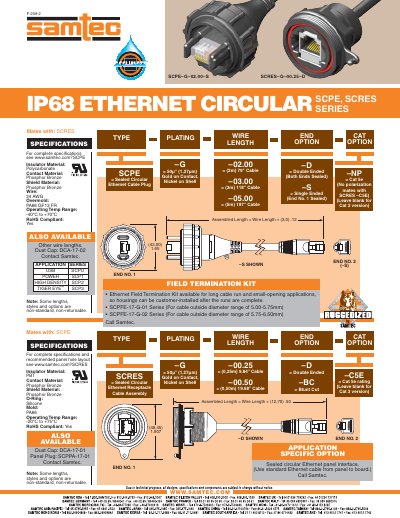

This document describes the features and characteristics of the SCRES and SCPE series sealed circular Ethernet plugs and receptacles, including waterproof rating, materials, operating temperature range, etc.
The SCRES and SCPE series are sealed circular Ethernet cable assemblies designed for IP68 environments. They are available in various lengths (0.25 m to 5 m) with gold‑plated contacts and nickel‑plated shells, and support Cat 5e performance.
Options include double‑ended or single‑ended terminations, dust caps, panel plugs, and field termination kits. Materials such as polycarbonate or PBT insulators, phosphor‑bronze contacts and shields, silicone O‑rings, and PA66 overmold provide durability across an operating temperature range of –40 °C to +75 °C. All parts are RoHS compliant. This manual is written in Chinese.
| Contact Plating | 50µ" Gold on Contact, Nickel on Shell |
|---|---|
| Insulator Material (SCPE) | Polycarbonate |
| Insulator Material (SCRES) | PBT |
| Contact Material | Phosphor Bronze |
| Shield Material | Phosphor Bronze |
| Overmold Material | PA66 (glass‑filled) |
| Operating Temperature Range (SCPE) | -40 °C to +70 °C |
| Operating Temperature Range (SCRES) | -20 °C to +75 °C |
| RoHS Compliance | Yes |
The SCRES assembly operates from –20 °C to +75 °C.
Yes, the SCPE assembly is RoHS compliant.
Contacts are plated with 50 µ" gold and the shell is nickel plated.
