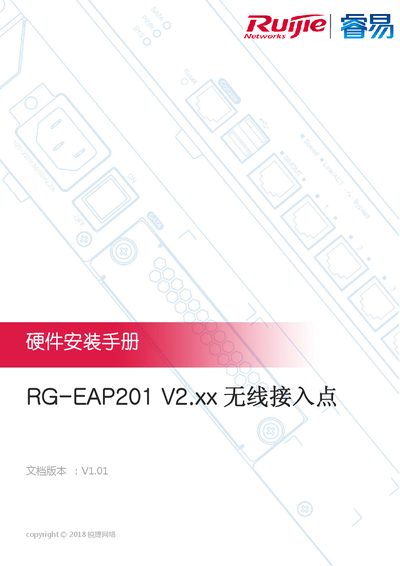

This guide provides hardware installation instructions for the Ruijie RG-EAP201 V2.xx wireless access point, covering preparation, mounting, and safety…
This manual serves as a hardware installation guide for the Ruijie RG-EAP201 V2.xx wireless access point. It details the product's physical characteristics, including its 802.11n capability and built-in antenna design, and outlines the necessary steps for mounting the device on walls or ceilings. The guide is intended for users with experience in network hardware installation and maintenance. This manual is written in Chinese.
| Transmission Protocol | 802.11b/g/n |
|---|---|
| Spatial Streams | 2 streams, 2x2 MIMO |
| Transmission Rate | 300Mbps |
| Dimensions | 198mm * 158mm *27.3mm |
| Weight | 0.28kg |
| Operating Temperature | 0 °C～40°C |
| Operating Humidity | 5％～95％（无凝结） |
| Power Consumption | <7.5W |
| Protection Rating | IP41 |
| MTBF | >250000H |
The device can provide an access rate of up to 300Mbps.
The device must be installed indoors in a dry environment with adequate ventilation and space for heat dissipation.
