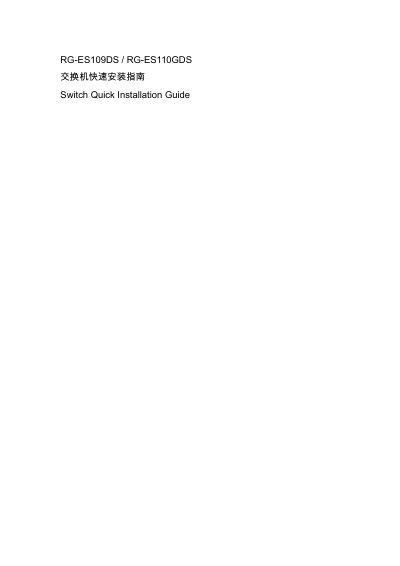

Ruijie RG-ES109DS / RG-ES110GDS Switch Quick Installation Guide

About this manual

The guide provides step‑by‑step instructions for installing Ruijie RG‑ES109DS and RG‑ES110GDS switches on a desktop or a standard 19‑inch rack. It covers required tools, safety precautions, and mounting procedures.

It also explains how to connect devices, interpret LED indicators, and select the operating mode (Standard, Flow‑Control OFF, or Port Isolation). Technical specifications such as port types, dimensions, power requirements, and environmental limits are listed for reference. This manual is written in Chinese.

What's inside

• Installation Overview
• Mounting to Desktop
• Mounting to 19‑inch Rack
• Device Connection
• LED Indicators
• Operating Modes
• Technical Specifications

Specifications

Frequently asked questions

How many RJ45 10/100Mbps ports does the RG‑ES109DS have?

The RG‑ES109DS provides eight 10/100 Mbps RJ45 ports.

What operating modes are supported by the switches?

Three modes are supported: Standard mode, Flow‑Control OFF, and Port Isolation.

How do I mount the switch in a 19‑inch rack?

Fix the two L‑shaped brackets to the switch with the included screws, then secure the brackets to the rack using your own screws.

What does a solid LED on a port indicate?

A solid LED means the port is connected to a device.
