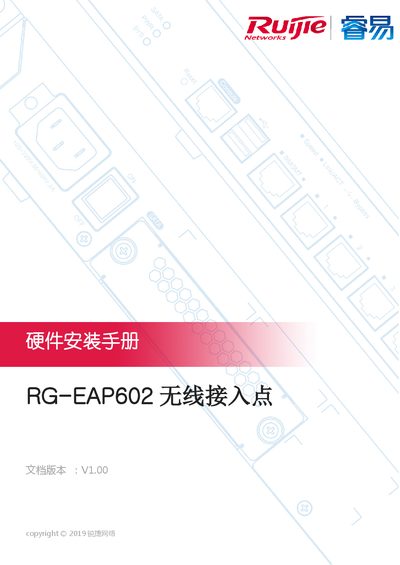

The guide provides hardware installation instructions, specifications, and safety requirements for the Ruijie RG-EAP602 wireless access point.
This manual describes the RG‑EAP602 wireless access point, an outdoor‑rated device that supports 802.11ac Wave2 with up to 866 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. It includes product features, technical specifications, and detailed installation steps for users with networking experience.
The document covers safety precautions, grounding and lightning protection, environmental requirements, mounting methods, cable connections, and a full packing list. Appendices provide information on compatible Mini‑GBIC modules, hazardous substance compliance, and warranty details. This manual is written in Chinese.
| Dimensions (L×W×H) | 222 mm × 200 mm × 166 mm |
|---|---|
| Maximum Transmission Rate | 866 Mbps @5 GHz, 300 Mbps @2.4 GHz |
| Working Frequency Bands | 2.4 GHz (2.4G‑n) and 5.15‑5.85 GHz (a/n/ac) |
| Maximum Transmit Power | ≤ 500 mW |
| Antenna Type | Integrated omnidirectional antenna |
| Antenna Gain | 3 dBi (2.4 GHz), 4 dBi (5 GHz) |
| Ethernet Ports | 1×10/100/1000 Base‑T (uplink), 1×10/100/1000 Base‑T (LAN) |
| PoE Support | 802.3af (PoE) supported |
| Power Consumption | < 12.95 W |
| Operating Temperature | -40 °C ~ +65 °C |
| Operating Humidity | 0 % ~ 100 % (non‑condensing) |
| IP Protection Rating | IP68 |
| Weight (without mounting bracket) | < 1 kg |
The device can achieve up to 866 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.
Yes, it supports 802.3af PoE power input.
It can operate from –40 °C to +65 °C.
The enclosure is rated IP68, suitable for harsh outdoor environments.
