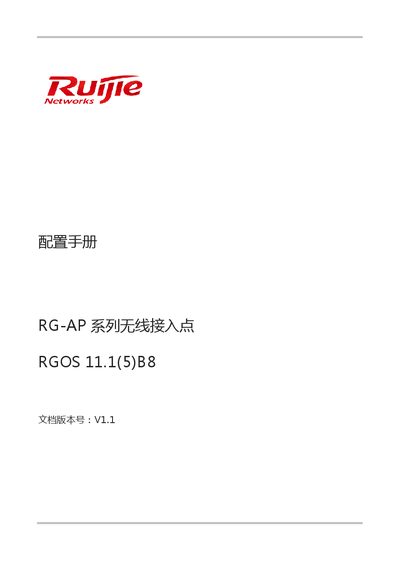

Configuration manual for Ruijie's RG-AP series wireless access points, covering WLAN setup, AP mode switching, user management, and advanced features.
This manual provides configuration guidance for Ruijie's RG-AP series wireless access points. It is intended for network engineers, technical promoters, and administrators who need to set up and manage WLAN functions, AP mode (fat/thin), and related services.
The document is organized into sections such as WLAN Basic Configuration, APMG, STAMG, ETH‑MHG, Data‑Plane, WLOG, Web Authentication, and Time‑Range configuration. Each section describes command syntax, parameters, usage examples, and verification methods to help users correctly apply settings on the devices. This manual is written in Chinese.
| Software version | RGOS 11.1 (5)B8 |
|---|---|
| Default backend IP (fat mode) | 192.168.1 10.1/255.255.255.0 |
| Default front‑end IP (fat mode) | 192.168. 111.1/255.255.255.0 |
Use the ap-mode command with fit for thin mode or fat for fat mode; add dhcp to obtain an IP address automatically.
Run the show ap‑mode command in privileged mode to display whether the AP is in fat or thin mode.
Use the web-auth command family, e.g., web-auth port -control to enable or modify web authentication settings.
Create a time range with the time-range command, then define absolute or periodic intervals using absolute or periodic sub‑commands.
