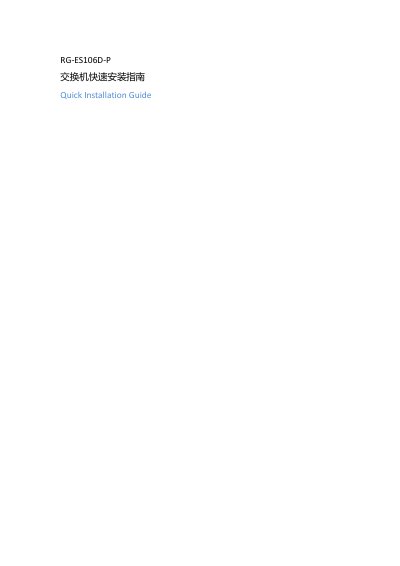

This quick installation guide provides setup steps, connection instructions, LED indicators, operating modes, and specifications for the Ruijie RG-ES106D-P…
The guide explains how to install the RG-ES106D-P switch on a clean, stable surface and connect it to Ethernet devices using either straight or crossover cables, thanks to the auto MDI/MDIX function. It also describes the PoE priority mechanism that shuts off lower‑priority ports when total power consumption exceeds the switch’s maximum output.
Three operating modes are available—Standard, Flow Control OFF, and Port Isolation—each with its own LED indicators for power, PoE status, and link activity. The document lists detailed technical specifications such as port types, backplane bandwidth, PoE standards, power limits, dimensions, and environmental operating ranges. This manual is written in Chinese.
| Ports | 6 × 10/100 Mbps RJ45 |
|---|---|
| Backplane bandwidth | 1.2 Gbps |
| PoE standard | IEEE 802.3at, IEEE 802.3af |
| Maximum port power | 30 W |
| Maximum switch power | 58 W |
| Dimensions (L×W×H) | 100 mm × 100 mm × 26 mm |
| Power adapter input | 100‑240 V AC, 50/60 Hz, 1.5 A |
| Power adapter output | 51 V DC, 1.25 A |
| Operating temperature | 0 °C – 45 °C |
| Operating humidity | 10 % – 90 % RH (non‑condensing) |
It supports three operating modes: Standard Mode, Flow Control‑OFF, and Port Isolation.
Each PoE port can supply up to 30 W of power.
The PoE LED is solid on when the port supplies power; it blinks if the connected device draws too much power.
The switch has a backplane bandwidth of 1.2 Gbps.
