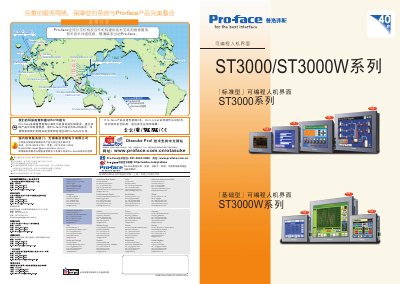

Pro-face ST3000/ST3000W Series HMI Product Leaflet

About this manual

This product leaflet provides an overview of the Pro-face ST3000 and ST3000W series Human Machine Interfaces (HMIs). It details the available screen sizes, ranging from 3.8 inches to 10.4 inches, and highlights the series' compliance with environmental standards such as RoHS and international safety certifications like CE and UL/c-UL.

The document outlines key software features and compatibility, noting that the ST3000 series can connect to two different controllers simultaneously. It also describes the GP-Pro EX software capabilities, including drag-and-drop functionality, address mapping improvements, and the ability to import CAD data (DXF, DWF) and Visio files to streamline screen design. This manual is written in Chinese.

What's inside

• Product Overview
• Screen Sizes
• Environmental Compliance
• Controller Compatibility
• Software Features
• CAD Import
• Address Mapping
• Animation Functions
• Global Support
• Technical Specifications

Specifications

Frequently asked questions

What are the screen sizes available for the ST3000 series?

The ST3000 series is available in screen sizes of 3.8, 5.7, 7.5, and 10.4 inches.

Can the ST3000 series connect to multiple controllers?

Yes, the ST3000 series can connect to two different controllers simultaneously.

What software version is required for the ST3000W series?

The ST3000W series requires GP-Pro EX V2.5 (model EX-ED-V25) English version or later.
