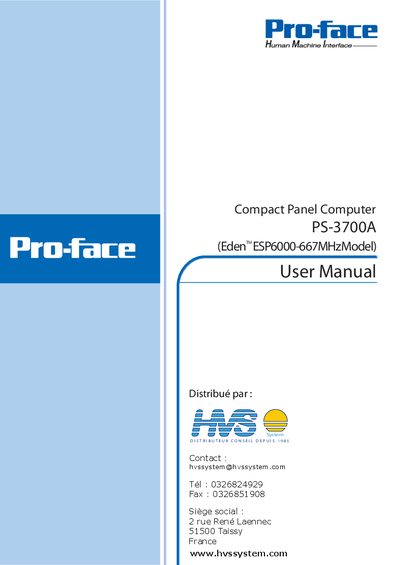

pro-face Compact Panel Computer PS-3700A (Eden TM ESP6000-667MHzModel) User Manual

This manual introduces the operation procedures and functions of the Compact Panel Computers PS-3700A (Eden TM ESP6000 - 667MHz Model).

Brand: Pro-face
Document type: User Manual
Language: English
Pages: 129
File format: PDF
File size: 3.6 MB
Published: 01 June, 2012
Updated: 30 September, 2023
MD5 checksum: 2F8EDE2FF2FA1C758259648DB18BFCB1
PDF: pro-face Compact Panel Computer PS-3700A (Eden TM ESP6000-667MHzModel) User Manual PDF

About this manual

The PS-3700A Compact Panel Computer is a multipurpose factory automation computer that combines a touch panel, LCD display, and built‑in PC hardware. This manual explains how to install, configure, and safely operate the unit.

Key sections cover essential safety precautions, hardware installation, power and backlight handling, UL/c‑UL compliance, and system configuration. The guide also includes troubleshooting tips, specifications, and a detailed index for quick reference.

What's inside

Introduction
Essential Safety Precautions
Hardware Installation
Package Contents
Electrical Specifications
Performance Specifications
System Configuration
Remote Shutdown Feature
UL/c-UL Application Notes
Index

Specifications

UL listing	UL File No. E220851
Minimum power‑cord wire gauge	AWG18 or larger

Frequently asked questions

What should I do if the PS-3700A backlight burns out?

Check if the screen stays blank when not in Standby Mode or if touching the screen does not bring the display back; if so, the backlight is burned out and should be replaced.
