The AGP-3600T is a touch-screen terminal in the AGP-3000 series. It features an 800 x 600 pixel TFT color LCD display with 65536 colors, a 248.0 mm (W) x 186.5 mm (H) display area, and support for ASCII code, Chinese, Japanese, Taiwanese and Korean character sets.

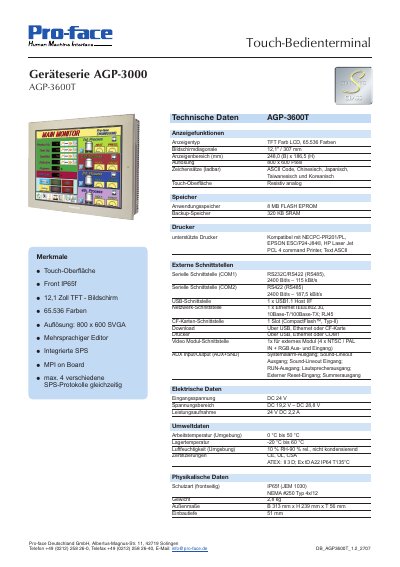

This document provides technical specifications for the Pro-face AGP-3600T Human Machine Interface (HMI) terminal. It describes a 12.1-inch TFT color LCD device with resistive touch capability, designed for use in machines and plants as an input and display medium.
The sheet lists electrical, physical, and environmental data, including power requirements of DC 24V, dimensions of 313 x 239 mm, and a weight of 2.8 kg. It also outlines supported interfaces such as RS232C/RS422 serial ports, USB, Ethernet, and CompactFlash slots. This manual is written in German.
| Display Type | TFT Color LCD, 65.536 Colors |
|---|---|
| Screen Diagonal | 12.1 inch / 307 mm |
| Resolution | 800 x 600 Pixel |
| Touch Surface | Resistive analog |
| Application Memory | 8 MB FLASH EPROM |
| Backup Memory | 320 KB SRAM |
| Input Voltage | DC 24V (Range: 19.2V - 28.8V) |
| Power Consumption | 22W |
| Operating Temperature | 0°C to 50 °C |
| Weight | 2.8 kg |
The device features a resolution of 800 x 600 pixels.
The unit operates on a DC voltage between 19.2 V and 28.8 V.
The device can operate in an environment up to 50 °C.
